Products >> Rigging hardware >> clips
|

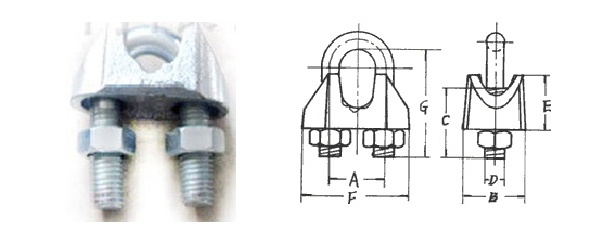

Size mm |
kg/pc |
A |
B |
C |
D |
E |
F |
G |
|
6 |
0.03 |
13.0 |
14.0 |
16.0 |
6.0 |
11.0 |
25.0 |
24.0 |
|
8 |
0.04 |
17.0 |
18.0 |
21.0 |
8.0 |
14.0 |
33.0 |
32.0 |
|
9 |
0.085 |
20.5 |
23.0 |
25.0 |
10.0 |
18.0 |
40.0 |
38.0 |
|
11 |
0.095 |
24.0 |
28.0 |
31.0 |
12.0 |
22.0 |
48.0 |
46.0 |
|
13 |
0.280 |
28.5 |
32.0 |
36.0 |
14.0 |
25.0 |
56.0 |
54.0 |
|
14 |
0.430 |
30.0 |
32.0 |
36.0 |
14.0 |
25.0 |
58.0 |
56.0 |
|
16 |
0.490 |
32.0 |
32.0 |
38.0 |
14.0 |
25.0 |
60.0 |
60.0 |
|
19 |
0.680 |
37.0 |
37.0 |
43.0 |
16.0 |
29.0 |
69.0 |
70.0 |
|
21 |
1.170 |
41.0 |
41.0 |
49.0 |
18.0 |
32.0 |
77.0 |
78.0 |
|
22 |
1.800 |
43.0 |
41.0 |
49.0 |
18.0 |
32.0 |
79.0 |
81.0 |
|
26 |
2.130 |
49.0 |
46.0 |
56.0 |
20.0 |
36.0 |
89.0 |
92.0 |
|
29 |
2.680 |
52.0 |
46.0 |
57.0 |
20.0 |
36.0 |
92.0 |
98.0 |
