Products >> Rigging hardware >> clips
|

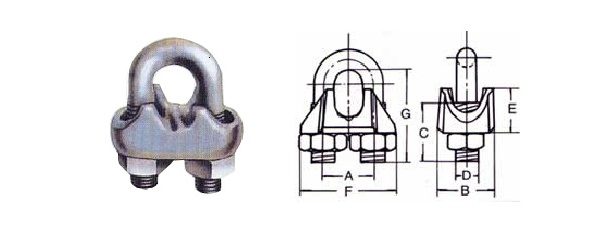

Size mm |
kg/pc |
A |
B |
C |
D |
E |
F |
G |
|
8 |
0.062 |
18.0 |
19.0 |
22.0 |
8.0 |
14.0 |
34.0 |
32.0 |
|
10 |
0.120 |
22.0 |
23.0 |
28.0 |
10.0 |
17.0 |
42.0 |
40.0 |
|
12 |
0.210 |
26.0 |
30.0 |
33.0 |
12.0 |
20.0 |
50.0 |
48.0 |
|
14 |
0.230 |
28.0 |
30.0 |
33.0 |
12.0 |
21.5 |
52.0 |
52.0 |
|
16 |
0.480 |
34.0 |
38.0 |
44.0 |
16.0 |
26.5 |
66.0 |
64.0 |
|
18 |
0.526 |
36.0 |
38.0 |
44.0 |
16.0 |
27.0 |
68.0 |
68.0 |
|
20 |
0.540 |
38.0 |
38.0 |
44.0 |
16.0 |
30.0 |
70.0 |
72.0 |
|
22 |
0.580 |
40.0 |
38.0 |
44.0 |
16.0 |
31.5 |
72.0 |
76.0 |
|
26 |
1.120 |
50.0 |
48.0 |
55.0 |
20.0 |
37.5 |
90.0 |
92.0 |
|
28 |
|
52.0 |
48.0 |
55.0 |
20.0 |
39.0 |
92.0 |
96.0 |
|
32 |
|
56.0 |
48.0 |
55.0 |
20.0 |
41.0 |
96.0 |
104.0 |
|
36 |
|
64.0 |
58.0 |
66.0 |
24.0 |
48.0 |
112.0 |
120.0 |
|
40 |
|
68.0 |
58.0 |
66.0 |
24.0 |
50.0 |
116.0 |
128.0 |
